TU Series UV Videoscope/ Industrial Endoscope/ Joystick Videoscope
SKU:
| Categories | Customized Borescopes |
|---|---|
| Brand | Jeet Videoscopes Manufacturer |
| Model | TU |
| Probe Diameter(mm) | Φ6 |
| Camera Pixels | 1,000,000 |
| Image Resolution | 1280×720 |
| Video Resolution | 1280×720 |
| DOF | 10-100mm |
| FOV | 120° |
| Viewing Direction | front view |
| Light Source | Rear-mounted optic fiber cold UV+White source |
| Categories | Customized Borescopes |
|---|---|
| Brand | Jeet Videoscopes Manufacturer |
| Model | TU |
| Probe Diameter(mm) | Φ6 |
| Camera Pixels | 1,000,000 |
| Image Resolution | 1280×720 |
| Video Resolution | 1280×720 |
| DOF | 10-100mm |
| FOV | 120° |
| Viewing Direction | front view |
| Light Source | Rear-mounted optic fiber cold UV+White source |
Loading...
Description

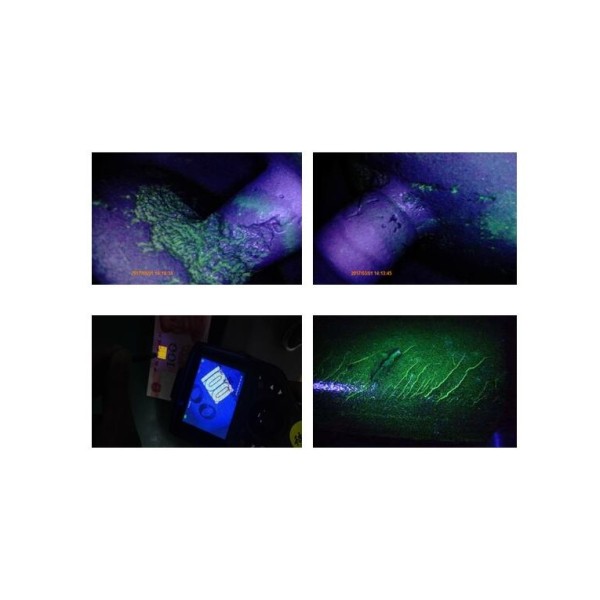

V Inspection On Site
Integrated design of UV& white dual light sources. In a completely black environment, white light can be used to find the approximate defect, then spray the phosphor, after the phosphor penetrates, switch to UV light source for flaw detection which makes the detection more efficient and accurate!
UV videoscopes are mainly applied in the aerospace industry, precision casting and forging, machinery manufacturing, railway construction, ships, scientific research units, petroleum, chemical, pressure vessel industries, etc.
Flexible Articulation Control
360° joystick-control articulation, damping type positioning design, precise probe locking technology, make the detection more accurate and efficient. Independently developed technology of long-distance transmission ensures bending angle≥100°，even the tube reaches 10 meters.
360° precision articulation

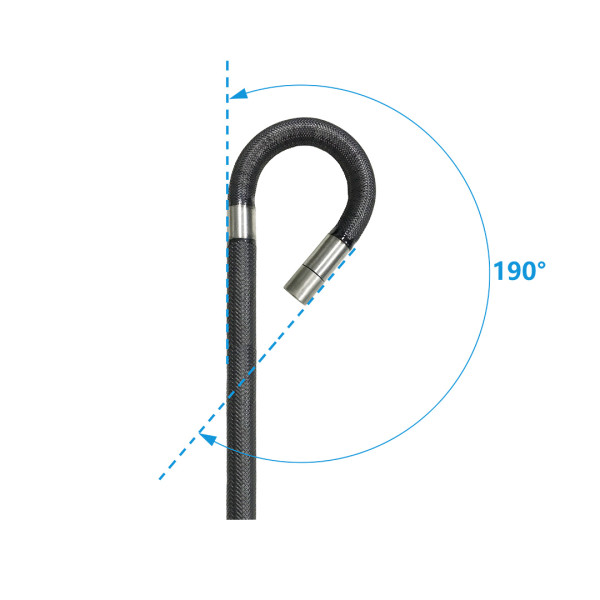

190° bending angle
Strong Hardware
TU series HD UV fluorescent videoscope adopts modular design, the host and the handle can be separated with one button. The dual light source of the probe is designed in an integrated way, and an insert tube is equipped with both ultraviolet light and white light at the same time. By one-key switch through the universal button, white light can be used to find the direction, and ultraviolet fluorescence detection can be performed.
High temperature alarm function: Orange alarm when the temperature is above 65℃; Red alarm and shutdown when the temperature is more than 80℃.
The image can be outputted to HD display by HDMI.
Original dual battery design, 8 hours working time; real-time battery indication.
Display resolution: 1280*960, high light, wide color gamut, all sight viewing angle, ensure clear image, rich colors and good color reproduction.
