JEET TS series handheld measurement videoscope
SKU:
| Categories | Measuring Endoscopes |
|---|---|
| Brand | Jeet Videoscopes Manufacturer |
| Model | TS |
| Diameter | 1.8mm/2.2mm/2.8mm/3.9mm/6mm/8mm |
| Working length | 1.5m/2m/3m（customized） |
| photo/video resolution | 640 x 480/1280 x 720 |
| DOF | 5mm-50mm/10mm-100mm |
| Viewing Direction | front view/side view front view/side view/dual-cam |
| Standard precision value | 0.1mm |
| Minimum precision value | 0.01mm |
| Accuracy | ≥95% |
| Articulation | 360°all way |
| Categories | Measuring Endoscopes |
|---|---|
| Brand | Jeet Videoscopes Manufacturer |
| Model | TS |
| Diameter | 1.8mm/2.2mm/2.8mm/3.9mm/6mm/8mm |
| Working length | 1.5m/2m/3m（customized） |
| photo/video resolution | 640 x 480/1280 x 720 |
| DOF | 5mm-50mm/10mm-100mm |
| Viewing Direction | front view/side view front view/side view/dual-cam |
| Standard precision value | 0.1mm |
| Minimum precision value | 0.01mm |
| Accuracy | ≥95% |
| Articulation | 360°all way |
Loading...
Description

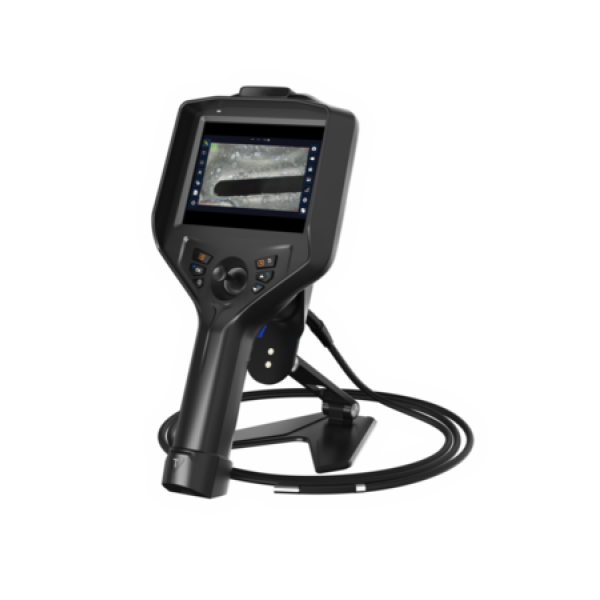

JEET TS SERIES HANDHELD MEASUREMENT VIDEOSCOPE
TS Series 3D Measurement Videoscope
Distance between two points
Multiple point
circumference
Point-to-Plane- depth
During measurement process，it has adjustable navigation key and
window function to accurately adjust the measurement points. To
ensure the accuracy and precision of the measurement points, it will
measure several times. The standard accuracy value of the
measurement result is 0.1mm, and the minimum accuracy value is
0.01mm. After multiple measurements, the results can be displayed in
the list.
Intelligent Software
Picture in picture：static/dynamic image comparison software
Dual-camera image：image dynamic
real-time display Intelligent detection
Negative film function:Heighten the
contrast,see the defects more clearly

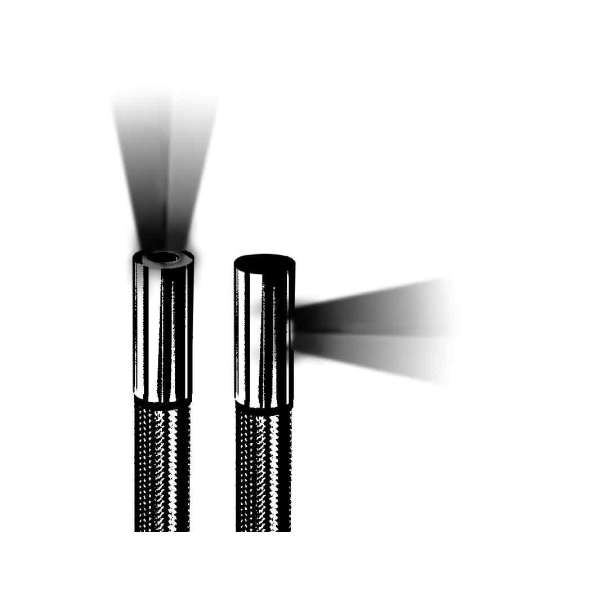

Front view and side view on one screen: see front view and side view at the same time
Picture annotation，free drawing: draw,write,mark,and edit
SaPicture comparison: find out the photo from document to compare on one screen
①Select pictures and editing the report
②Generate report in PDF file
③Report sent to the mobile phone via Bluetooth
Different tube system
TS SERIES HANDHELD MEASUREMENT VIDEOSCOPE adopts modular design.The monitor and probe can be
separated by one button. It is compatible with different tubes with 1.8mm~8.0mm, and choose front view, side
view,and unit.High HD display with cameras pixels like1,000,000 and 300,000.Different tube system allow to work
in different working situation.
Quality Assurance
All products are complied with RoHS，CE，and ISO standard and passed
testing for temperature waterproof，drop，
vibration and pressure.We devote
ourselves to providing high quality professional inspection instrument to
every customer.
Portable design
Portable instrument Case
①One hand-held integrated design，light weight，easy to
use，videoscope weight≤0.9kg（
including battery）；
②Instrument Case，accessories，portable.
