JEET 4MM Front View S-Series HD Industrial Videoscope
SKU:
| Categories | Industrial Videoscopes |
|---|---|
| Brand | Jeet Videoscopes Manufacturer |
| Model | S |
| Probe Diameter(mm) | Φ4.0 |
| Tube Length | 1m/1.5m |
| Tube Material | tungsten alloy |
| Camera Pixels | 1 mega pixels |
| Image Resolution | 1280*720 |
| DOF | 10~100mm |
| FOV | 120° |
| Light Source | LED ceramic light |
| Categories | Industrial Videoscopes |
|---|---|
| Brand | Jeet Videoscopes Manufacturer |
| Model | S |
| Probe Diameter(mm) | Φ4.0 |
| Tube Length | 1m/1.5m |
| Tube Material | tungsten alloy |
| Camera Pixels | 1 mega pixels |
| Image Resolution | 1280*720 |
| DOF | 10~100mm |
| FOV | 120° |
| Light Source | LED ceramic light |
Loading...
Description
JEET 4MM Front View S-Series HD Industrial Endoscope
1280×720 Mega HD Image
Car front face design button
3.5 inches IPS HD full-view display
Aircraft engine streamlined design joystick
Features
joystick-control 360°accurate articulation

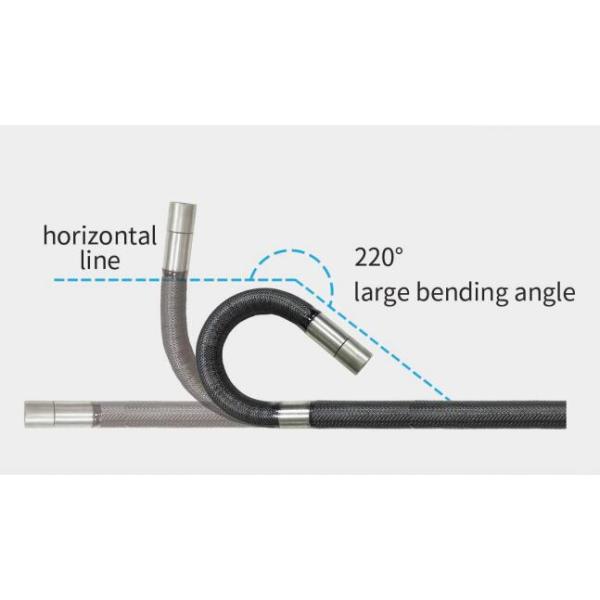

220°large bending angle, ensure to inspect every corner of detected object
It can insert and inspect as long as there are holes or gaps
Super bright ceramic light with 0-6 levels control
Sapphire glass lens, high precision probe
One-click photo/video taking, real-time wireless image transmitting
Iconic menu, easy operation
Light and portable only 0.5KG
The whole product is dust-proof and water-proof
Excellent quality, anti-fall and wear-resistant
Super long working time
Optional accessories
|
Model
|
S410
|
S415
|
|
|
Tube
System |
Probe Diameter(mm)
|
Φ4.0
|
|
|
Tube Length
|
1m
|
1.5m
|
|
|
Tube Material
|
tungsten alloy
|
||
|
Camera Pixels
|
1 mega pixels
|
||
|
Image Resolution
|
1280*720
|
||
|
DOF
|
10~100mm
|
||
|
FOV
|
120°
|
||
|
Light Source
|
LED ceramic light
|
||
|
Illuminance
|
25000Lx
|
||
|
Protecting Device of Durability
|
80mm buffer protection device on the connection between tube and handle
|
||
|
Articulation
|
360° joystick-control articulation
|
||
|
Bending Angle
|
maximun: 220°
|
||
|
Monitor
System |
Structure
|
hand-held integrated design
|
|
|
Display
|
3.5 inches IPS full-view display
|
||
|
Zoom In/Out
|
5X
|
||
|
Image Effect
|
image freezing, cold/warm color
|
||
|
Image Adjustment
|
image sharpness/ contrast/gamma value
|
||
|
Image/Video Format
|
JPEG/MP4
|
||
|
File Storage
|
standard TF card: 16G, Maximum: 64G
|
||
|
Data Port
|
HDMI video output, Micro USB port
|
||
|
Wireless Image Transmission
|
WIFI（optional）
|
||
|
Battery
|
detachable & rechargeable lithium battery
|
||
|
Battery Capacity
|
3.7V，3200mAh
|
||
|
Battery Working Time
|
≥3H
|
||
|
Battery Charge
|
DC 5V/1A
|
||
|
Outer Case Material
|
anti-fall engineering alloy material
|
||
|
Water/Dust Proof
|
probe/tube: IP67; monitor: IP65
|
||
|
Weight
|
≈0.5KG
|
||
|

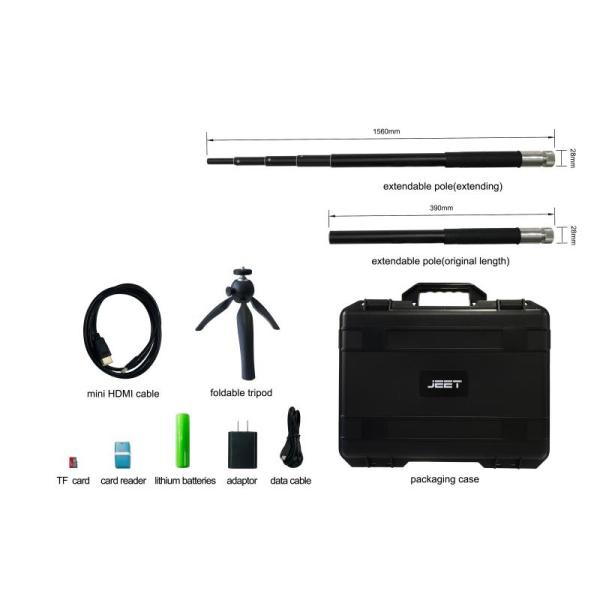

Accessories
|
Standard Configuration
|
instrument case/ videoscope/ battery card reader/ TF card/charger/ USB cable/ manual
|
|
|
optional
|
extendable pole: 0.35-1.8m/mini HDMI cable/ foldable tripod
|
||
