RAM-4X-KIT Heavy-Duty Turbine Firetube Boiler Cleaning System • RAM-4Xa-50-15-KIT
SKU:
Product Features
- Simple to operate - minimal training required
- Stainless steel construction - long life
- Interchangeable cleaning tools - versatile
- Large wheels - easy to move
- Simultaneous vacuum - removes deposits
- Foot switch activation - safe operation
- Flexible Shaft Speed: 1,725 rpm (can be decreased to 862.5 rpm by changing pulley ratio - request 2:1 ratio drive for greater torque)
- Motor Power: 1 HP (0.75 kW)
- Input Power: 13 amps, 115 V, 60 Hz AC (Optional: 13 amps, 115 V, 50 Hz; 6.5 amps, 230 V, 60 Hz; or 6.5 amps, 230 V, 50 Hz)
- Dimensions: 37" (940mm) high x 20" (510mm) wide x 17" (430mm) deep
- Weight: 59 lbs (27 kg) net dry
Product Features
- Simple to operate – minimal training required
- Stainless steel construction – long life
- Interchangeable cleaning tools – versatile
- Large wheels – easy to move
- Simultaneous vacuum – removes deposits
- Foot switch activation – safe operation
- Flexible Shaft Speed: 1,725 rpm (can be decreased to 862.5 rpm by changing pulley ratio – request 2:1 ratio drive for greater torque)
- Motor Power: 1 HP (0.75 kW)
- Input Power: 13 amps, 115 V, 60 Hz AC (Optional: 13 amps, 115 V, 50 Hz; 6.5 amps, 230 V, 60 Hz; or 6.5 amps, 230 V, 50 Hz)
- Dimensions: 37″ (940mm) high x 20″ (510mm) wide x 17″ (430mm) deep
- Weight: 59 lbs (27 kg) net dry
Loading...
Description
–
Product Overview

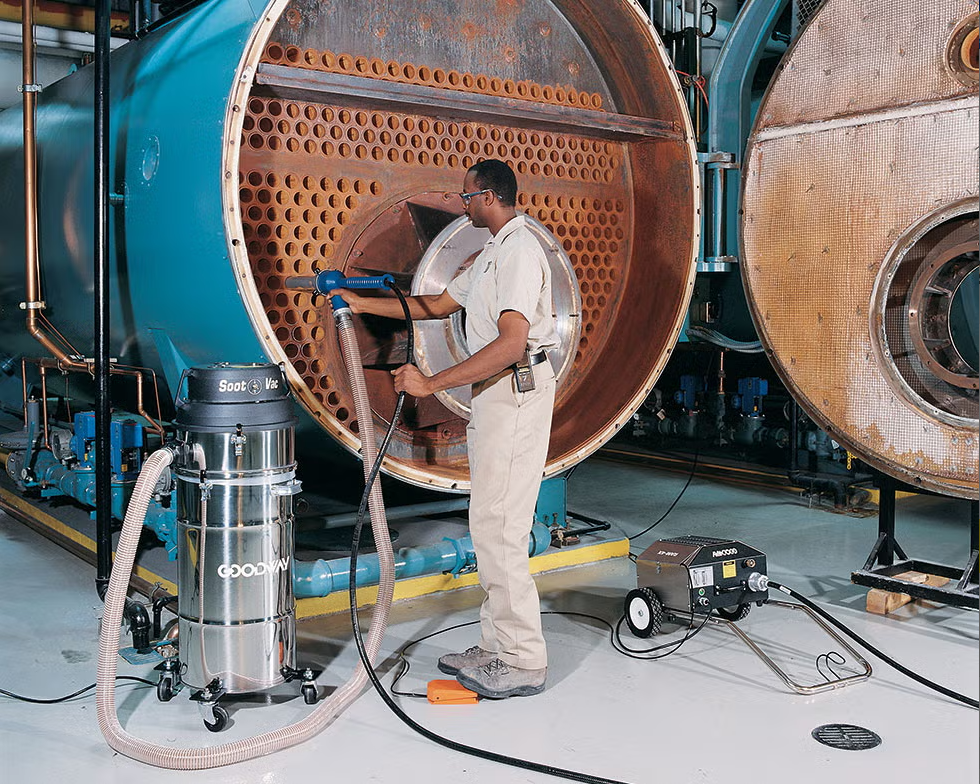

The RAM-4X Firetube Boiler Cleaning System is equipped with a full 1 HP (0.75 kW) drive motor. It uses a cleaning tool mounted to the tip of a heavy-duty flexible shaft and a simultaneous vacuum to remove scale and other deposits from boiler tubes 1″ (25.4mm) I.D. and up.
Additional information
| Size | 15 gal, 20 gal, 30 gal, 55 gal |
|---|
