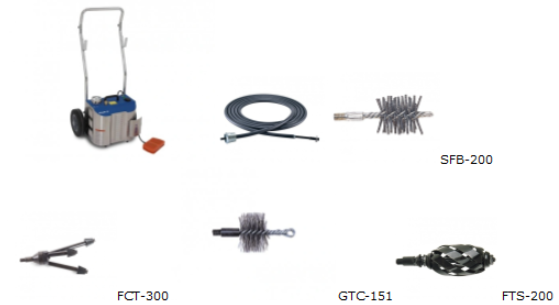

RAM-4A-ID-50, Boiler Tube Cleaner
- GTC-721-35C Flexible Shaft, 35’L Steel Casing for Heavy Deposit Removal
- SFB-200 Brush, Spring Filled, for removal of heavy scale deposit.
- (Ø1 3/8”, 1 5/8”, 2,2 ½.3”, 4”). Based on Tubes O.D.

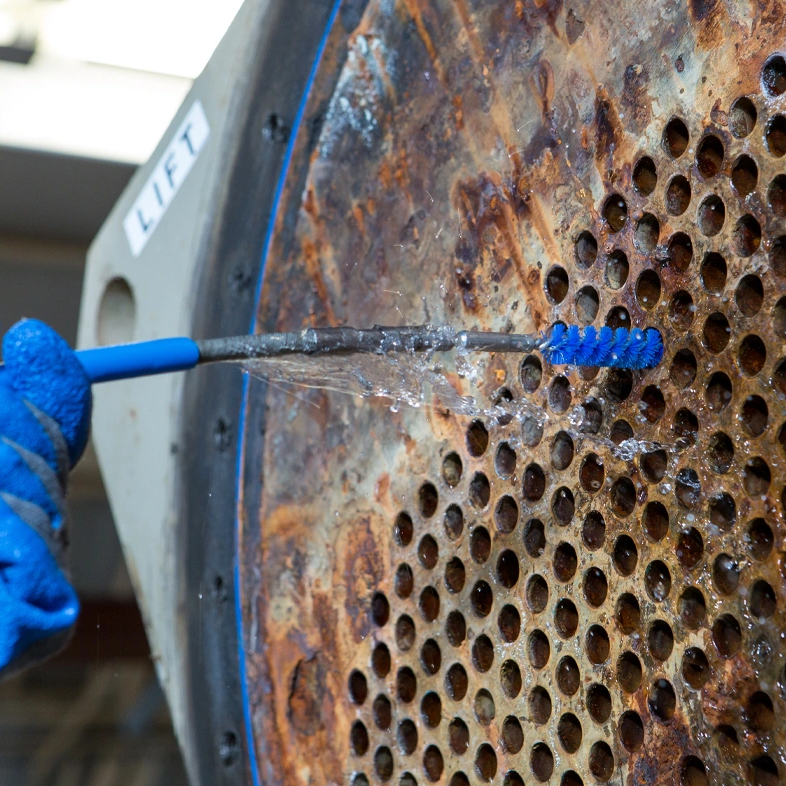

- GTC-151 Brush, for Removal of Light Scale/Deposit.
- (Ø1 3/8”, 1 5/8”, 2,2 ½.3”,3 ½”, 4”). Based on Tubes O.D.
- FCT-300 Flare Cone Tool for Tubes 1 ¾”-4” I.D
GTC-540-20SS 20-GALLON VACUUM
When cleaning soot is the job at hand, the GTC-540 Soot Vacuum delivers remarkable results. Ideal for soot and fine powder recovery, it is the recommended vacuum for professional boiler cleaning. Use this soot vacuum alone or with a Goodway firetube boiler cleaner. The GTC-540 can be used on 15 or 20 gallon (57 or 76 liter) tanks and 30 or 55 gallon (114 or 208 liter) drums. The GTC-540 series soot vacuum is uniquely engineered to collect soot quickly in boilers. Its high CFM rating allows light powdery materials' speedy recovery without the typical filter clogging. In addition, the soot is neatly collected into a disposable polyethylene bag for convenient disposal. Whatever the package, this soot vacuum system provides a clean solution to a dirty problem.
OPTIONAL
VAC-KIT-5
2" Grounded Bulk Pickup Vacuum Accessory Kit includes:
- · VAC-051 Smooth Bore PVC Hose 15' (4.5m), VAC-029 Bulk Pickup Nozzle 18" (460mm), VAC-030 Double Bend Wand 56" (1.4m) and VAC-031 Aluminum Gulper Tool 13" (330mm
NOT INCLUDED
Accessories NOT included in the RAM-4XA-ID-50
- GTC-721-35C Flexible Shaft, 35’L Steel Casing for Heavy Deposit Removal
- SFB-200 Brush, Spring Filled, for removal of heavy scale deposit.
- (Ø1 3/8”, 1 5/8”, 2,2 ½.3”, 4”). Based on Tubes O.D.
- GTC-151 Brush, for Removal of Light Scale/Deposit.
- (Ø1 3/8”, 1 5/8”, 2,2 ½.3”,3 ½”, 4”). Based on Tubes O.D.
- FCT-300 Flare Cone Tool for Tubes 1 ¾”-4” I.D
OPTIONAL
GTC-DPA-BFN152S
This is a vital tool for vacuuming up dislodged soot and scale, while using our Rotary Boiler Tube Cleaners. The GTC-DPA with 460mm (L) Bayonet can be used with the AWT-100, AWT-100X, RAM-4X and RAM-4X2A Tube Cleaners, for the recovery of dry deposits. Outllet Hose of 51mm x 3.7mL can be connected to GTC-540-20 Sootvac Vacuum to remove all the dirt and dust remove
GTC-540-20SS 20-GALLON VACUUM
When cleaning soot is the job at hand, the GTC-540 Soot Vacuum delivers remarkable results. Ideal for soot and fine powder recovery, it is the recommended vacuum for professional boiler cleaning. Use this soot vacuum alone or with a Goodway firetube boiler cleaner. The GTC-540 can be used on 15 or 20 gallon (57 or 76 liter) tanks and 30 or 55 gallon (114 or 208 liter) drums. The GTC-540 series soot vacuum is uniquely engineered to collect soot quickly in boilers. Its high CFM rating allows light powdery materials’ speedy recovery without the typical filter clogging. In addition, the soot is neatly collected into a disposable polyethylene bag for convenient disposal. Whatever the package, this soot vacuum system provides a clean solution to a dirty problem.
OPTIONAL
VAC-KIT-5
2″ Grounded Bulk Pickup Vacuum Accessory Kit includes:
- · VAC-051 Smooth Bore PVC Hose 15′ (4.5m), VAC-029 Bulk Pickup Nozzle 18″ (460mm), VAC-030 Double Bend Wand 56″ (1.4m) and VAC-031 Aluminum Gulper Tool 13″ (330mm
Description
–
Product Overview
RAM-4XA-ID-50 Heavy Duty Boiler Tube Cleaner

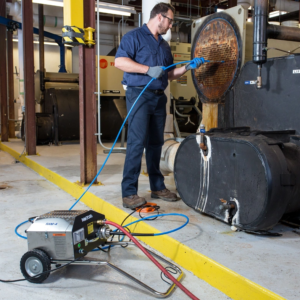

The impressive RAM-4X Tube Cleaner is equipped with a full 1 HP (0.75 kW) drive motor. It uses a cleaning tool mounted to the tip of a heavy-duty flexible shaft to remove hard deposits and scale from tubes/pipes 1″ (25.4mm) I.D. and up. Flexible shafts and accessories are available for either WET or DRY applications. For dry applications, the GTC-DPA Dry Pickup Attachment and a simultaneous vacuum cleaner is used to remove loosened deposits. For wet applications, the unit feeds water through the casing to the cleaning tool, flushing out deposits as they are loosened.
Specs
- Flexible Shaft Speed: 862.5 rpm
- Motor Power: 1 HP (0.75 kW)
- Input Power: 4.5 amps, 230 V, 50 Hz
- Dimensions: 37″ (940mm) high x 20″ (510mm) wide x 17″ (430mm) deep
- Weight: 59 lbs (27 kg) net dry
Features
- Simple to operate – minimal training required . Stainless steel construction – long life
- Interchangeable cleaning tools – versatile
- Large wheels – easy to move
- Simultaneous water flush or vacuum – removes deposits
- Foot switch activation – safe operation
