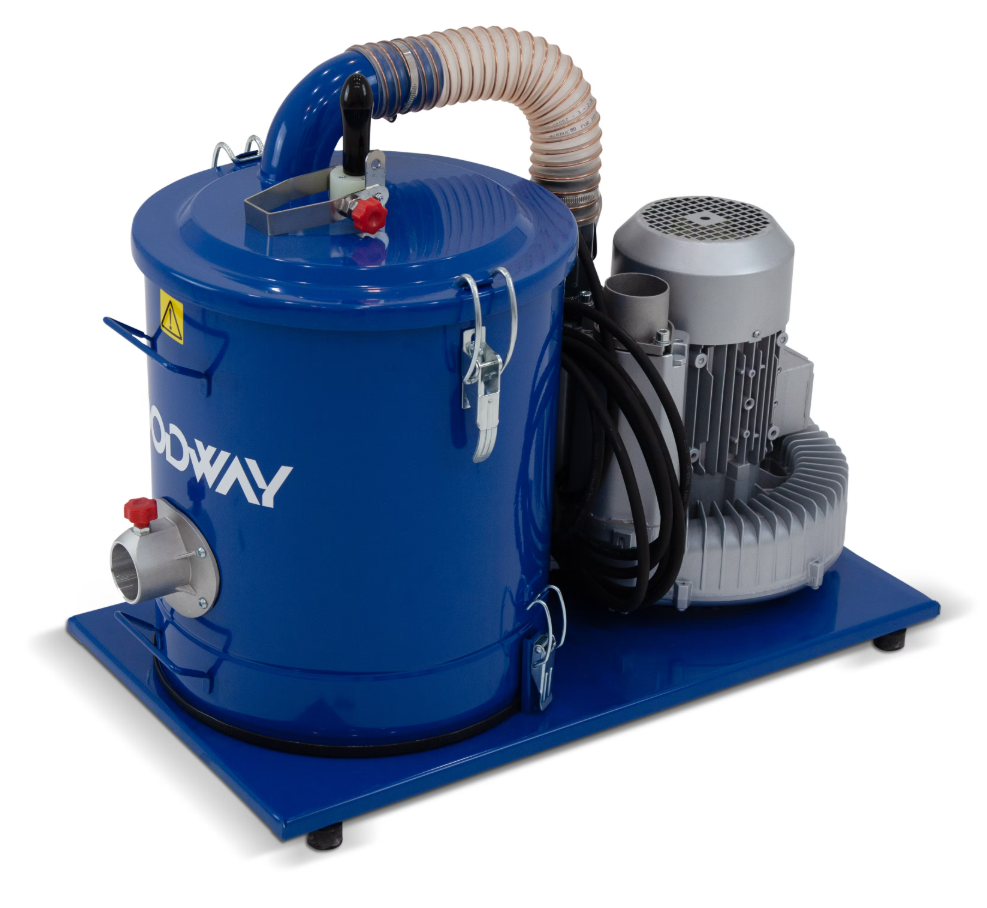

Industrial Vacuum, Dry, Continuous Duty • DV-SV [CD-135ST]
SKU:
What's Included
CD-135ST Stationary Continuous Duty Industrial Vacuum includes:
CD-135ST Continuous Duty Industrial Vacuum filters external filter shaker, 6-gallon detachable tank, and platform.
What’s Included
CD-135ST Stationary Continuous Duty Industrial Vacuum includes:
CD-135ST Continuous Duty Industrial Vacuum filters external filter shaker, 6-gallon detachable tank, and platform.
Loading...
Description
–
Product Overview
The CD-135ST Stationary Dry Continuous Duty Vacuum is ideal for production lines. It uses a maintenance-free, heavy-duty brushless blower motor, designed to run non-stop, 24 hours a day – without fear of motor burnout. It produces a static water lift of 108″ and an air displacement of 118 CFM. A cartridge filter traps particles down to 1 micron, while an external filter shaker keeps the filter clear. The compact size of the unit makes it ideal for use on or below a workbench, or workstation.
Product Features
- Heavy-duty brushless blower motor – continuous operation
- Detachable collection tank – easy dumping
- External filter shaker – keeps filter clear
- Reusable pocket filter – saves money
- Filter system traps particles down to 1 micron – superior filtration
- Mounting holes – secures vacuum in position for stationary use
- Motor Power: 2.3 HP By Pass Motor
- Input Power: 8 amps, 230 V, 50/60 Hz AC, three-phase (Other options available)
- Power Supply Cord: 16′, 12-4
- Static Water Lift: 108″
- Dry Capacity: 3.5 Gallons
- Air Displacement: 118 CFM
- Dimensions: 33″ high x 28″ wide x 17.33″ deep
- Weight: 72 lbs
Additional information
| Size | 15 gal, 30 gal, 55 gal |
|---|
