CoilPro® Jr. Portable HVAC Coil Cleaner • CC-JR-A
Product Features
- Deep cycle 12 Amp, 12 V rechargeable battery
- Integrated 3.3-gallon water tank and 1.75-quart chemical tank
- Adjustable control valve to inject chemicals from a 30:1 to 6:1 ratio
- 3' sectional 3/8" diameter stainless steel condenser wand
- Heavy duty adjustable carrying strap with shoulder pads
- A wide variety of custom attachments
- For condenser and evaporator coil cleaning
- Motor Power: 0.2 HP
- Input Power: 12 amps, 12 V, DC rechargeable VRLA battery
- Recharge Power: 0.3 amp, 115 V, 50/60 Hz AC Optional: 0.2 amp, 230 V, 50/60 Hz
- Output Water Pressure: 125 PSI at 0.6 GPM
- Pump: Positive displacement diaphragm pump
- Water Tank: 3.3 gallons
- Soap Container: 1.75 quarts
- Dimensions: 19" high x 18" wide x 10" deep
- Weight: 20 lbs net dry; 55 lbs at 3.3 gallons water and 1.75 quarts chemical
Product Features
- Deep cycle 12 Amp, 12 V rechargeable battery
- Integrated 3.3-gallon water tank and 1.75-quart chemical tank
- Adjustable control valve to inject chemicals from a 30:1 to 6:1 ratio
- 3′ sectional 3/8″ diameter stainless steel condenser wand
- Heavy duty adjustable carrying strap with shoulder pads
- A wide variety of custom attachments
- For condenser and evaporator coil cleaning
- Motor Power: 0.2 HP
- Input Power: 12 amps, 12 V, DC rechargeable VRLA battery
- Recharge Power: 0.3 amp, 115 V, 50/60 Hz AC Optional: 0.2 amp, 230 V, 50/60 Hz
- Output Water Pressure: 125 PSI at 0.6 GPM
- Pump: Positive displacement diaphragm pump
- Water Tank: 3.3 gallons
- Soap Container: 1.75 quarts
- Dimensions: 19″ high x 18″ wide x 10″ deep
- Weight: 20 lbs net dry; 55 lbs at 3.3 gallons water and 1.75 quarts chemical
Description
–
Product Overview

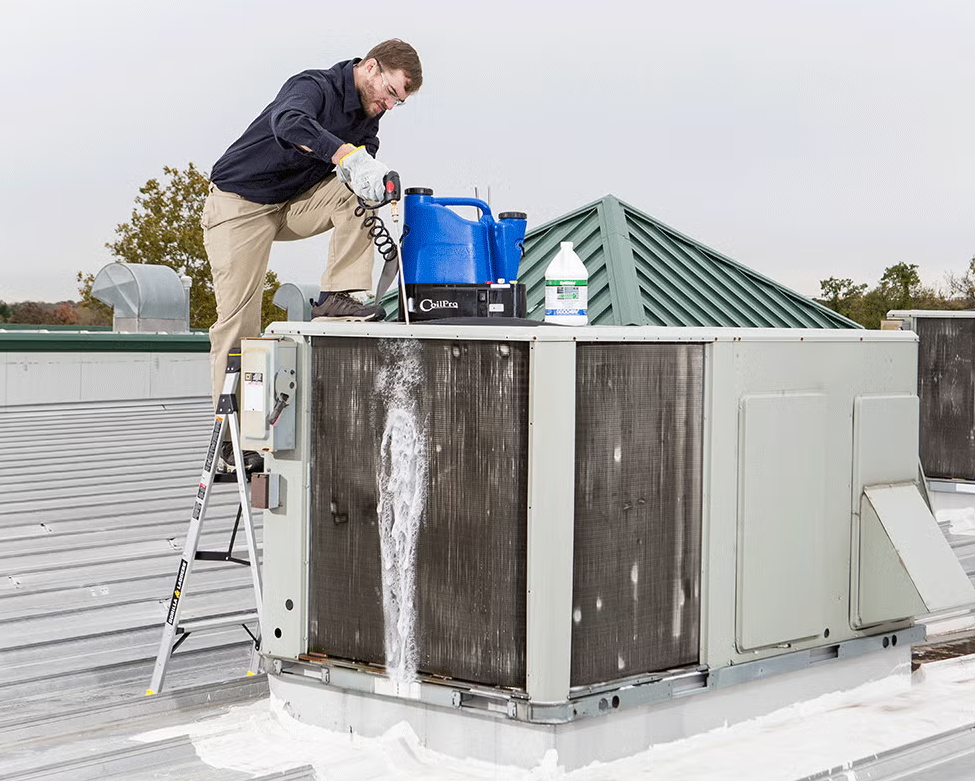

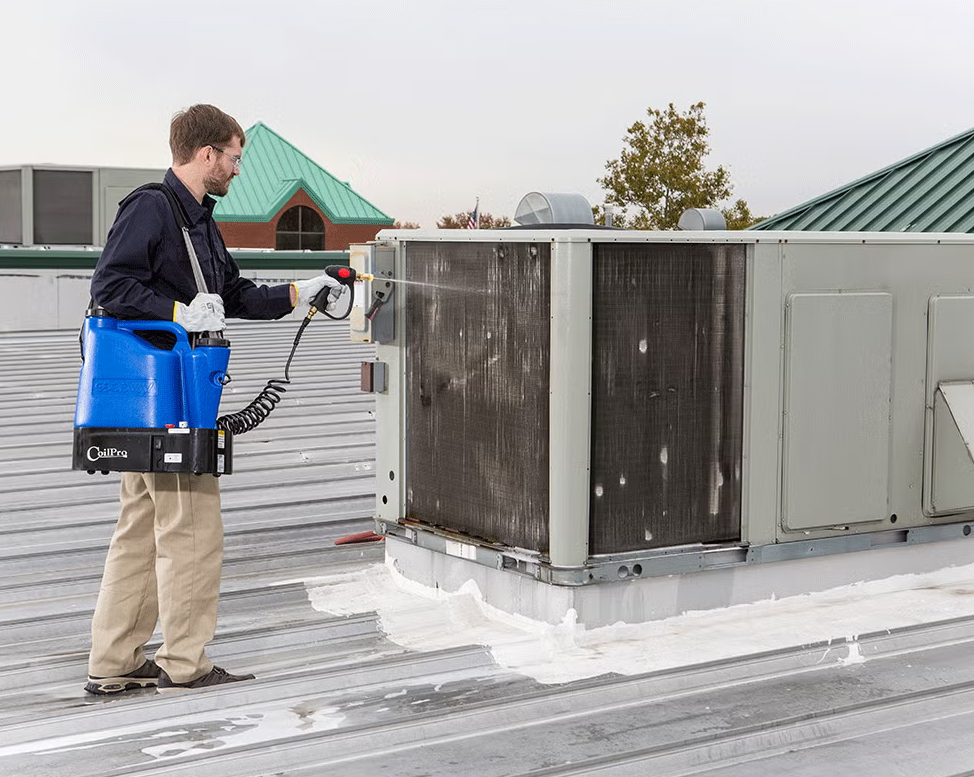

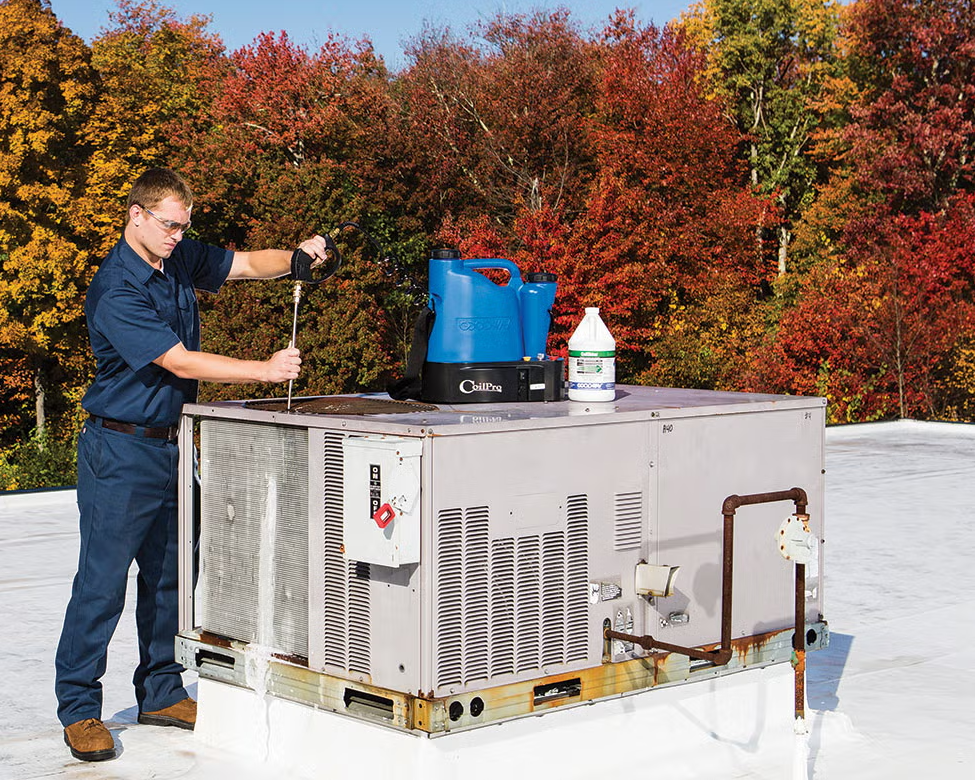

The CoilPro line of coil cleaners has become the industry standard for HVAC and refrigeration maintenance professionals. To constantly provide our customers with products designed for their specific applications, the CoilPro Jr. was created for maximum portability. The CC-JR portable HVAC coil cleaner has all of the unique features you would expect, including a powerful 125 PSI pump, long-lasting, deep cycle battery, operator-controlled chemical injection, and custom accessories. It’s all packed into a portable ergonomic design, making it easy to transport from job to job and up and down ladders You’ll find the CoilPro Jr. perfect for smaller rooftop units, hard-to-reach air handlers in attics, walk-ins, and mini-split, and refrigeration condenser coils.
