Drillguard provides complete operator protection with interchangeable bushings avaialable to accomodate drill press quill sizes. Fits quill size from 57.5mm to 70mm
SKU: I13125
Loading...
Description

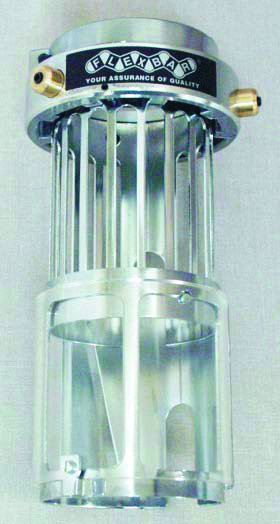

Flexbar Drillguard™
Provides Complete Operator Protection!
Interchangeable bushings available to accommodate most drill press quill sizes.
Features:
- Complete operator vision and protection assured.
- Smooth telescopic action via patented spiral guide grooves-window caged housing moves up while drill comes down; hence cutting tool is totally guarded.
- For drill changes – simply pull down on housing. Three spring loaded ball catches disengage and the housing drops out. Conversely, it quickly snaps back in place.
- Inner cage moving down protects window hence the operator from metal slivers.
Quality made of heavy duty material, Drillguard comes complete with installation and operation instruction. The Quill Ring (which hold cage housing) is made of heavy die-cast aluminum, with smooth finish.
